MTX Audio TR7510-22 Dual 2 Ohm 10" Subwoofer
$249.95*
FREE!**
1 Year
New
Please wait...
OUT OF STOCK
|
|
|

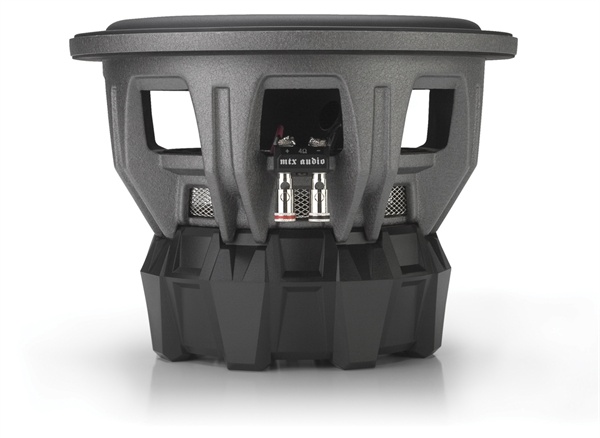

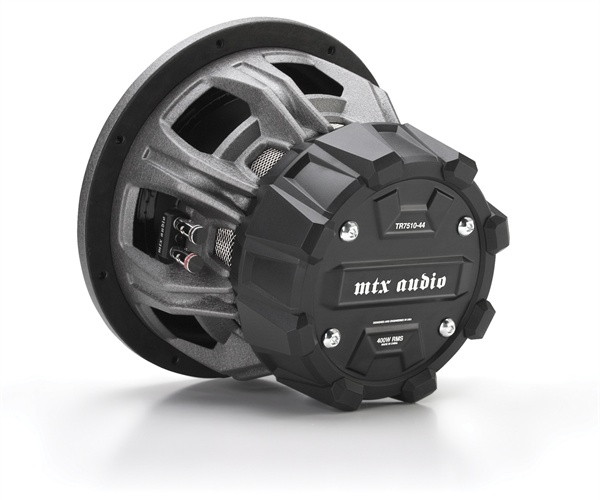

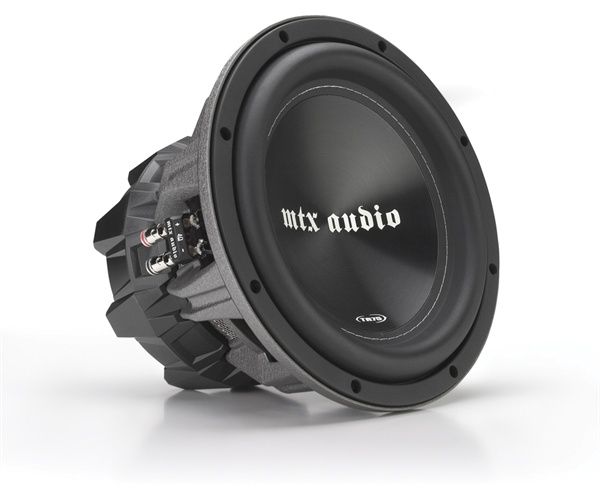

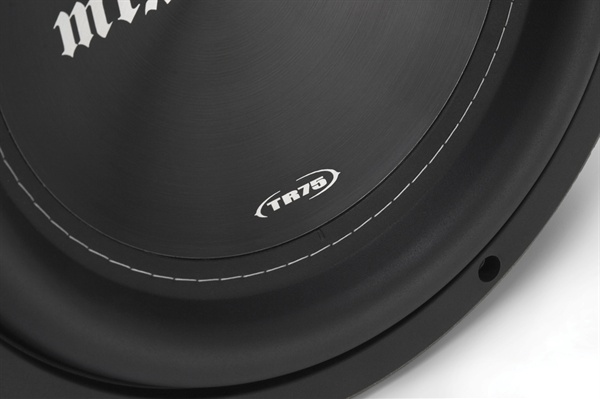

Thunder Round TR75 subwoofers incorporate a host of features designed for performance including a die cast
aluminum basket, a black anodized aluminum dust cap (with a laser etched gothic
MTX Audio logo), compression molded NBR surround for extreme
excursion, and 8 gauge nickel compression terminals designed to deliver big
power from your amp to these subs.
TR75 subwoofers are available in 10", 12" and 15" versions in both dual 4 Ohm and dual 2 Ohm configurations to they can be incorporated into virtually any installation. With up to 600W RMS power the TR75 series is effective in both SPL and sound quality installations.
Features:
-
ALDS Asymmetrical Linear Drive System with a flat progressive spider and extended pole piece for smooth, linear, piston like drive
-
Industry leading thermal power handling using 428° F High Temperature Voice Coil Wire
-

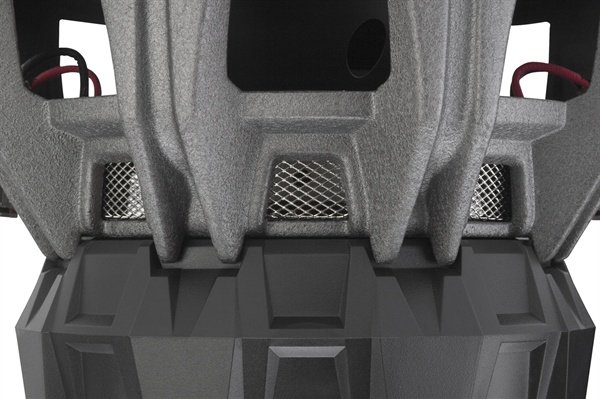

Exclusive Spider Plateau Venting cooling system cools at the voice coil
-
High Roll NBR Surround uses FEA optimized roll geometry to maximize excursion without sacrificing cone surface area
Specifications:
|
Part Number:
|
TR7510-22
|
|
Impedance:
|
Dual 2Ω
|
|
Frequency Response:
|
30Hz - 150Hz
|
|
RMS Power (Watts):
|
400
|
|
Recommended Amp Power (RMS):
|
200 - 400
|
|
Peak Power (Watts):
|
800
|
|
Sensitivity:
|
85.9dB (1W/1M)
|
|
Voice Coil:
|
2.4" (6.1 cm)
|
|
Magnet Weight:
|
93 oz.
|
|
Mounting Depth:
|
7.13" (18.11 cm)
|
|
Cut Out Diameter:
|
9.23" (23.44 cm)
|
|
Sealed Enclosure Net Volume:
|
0.75 cu ft
|
|
Vented Enclosure Net Volume:
|
1.50 cu ft
|
|
Volume Displacement (Sd x Xmax):
|
33.46 cu in
|
Downloads:
Items Shipped:
|
1
|
MTX Audio Thunder Round TR7510-22 Subwoofer
|
|
1
|
Owners Manual
|
