MTX Audio TS8510-44 Dual 4 Ohm 10" Subwoofer
TS85 Series
$499.95*
FREE!**
1 Year
New
Please wait...
OUT OF STOCK
|

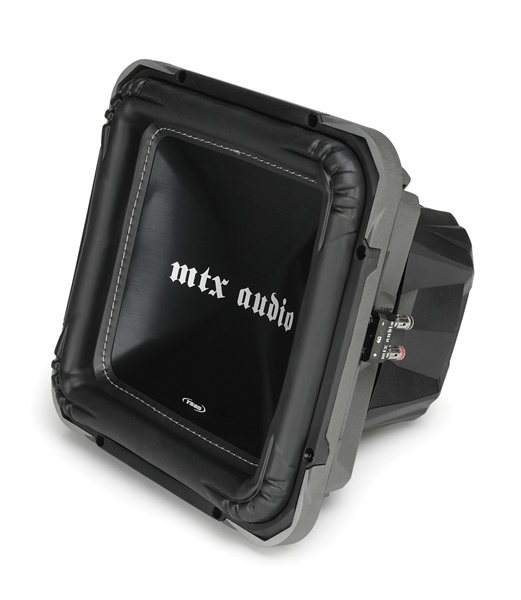

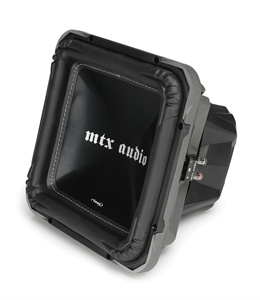

Front Angle View (TS8512-44 shown)
|
MTX square subwoofers are the evolution of square subwoofers.
ThunderSquare85 series subwoofers are designed to deliver exceptional
SPL to enthusiasts that are looking to get maximum bass out of their system. ThunderSquare85 subwoofers
feature a patented surround design that increases the amount of cone
surface diameter and that allows for exceptional excursion which results
in unbeatable volume displacement (boom, for those of you not familiar
with volume displacement), almost 25% more than the leading competitor. TS85 subwoofers feature an anodized aluminum dustcap and cast aluminum basket that increase efficiency and reduce resonance maximizing dB's and sound quality.
Features:
-
Up to 750W RMS Power Handling and 1500W Peak Power Handling
-
ALDS Asymmetrical Linear Drive System with a flat progressive spider and extended pole piece for smooth, linear, piston like drive
-
Exclusive Spider Plateau Venting cooling system cools at the voice coil
-
Available in Dual 4 Ohm or Dual 2 Ohm configurations
-
Sealed Box volume as little as 1.0 cubic feet
-
Vented Box volume as little as 1.5 cubic feet
-
Patented Surround Design
Specifications:
|
Part Number:
|
TS8510-44
|
|
Impedance:
|
Dual 4Ω
|
|
Tuning Frequency:
|
32Hz
|
|
Frequency Response:
|
30Hz - 104Hz
|
|
RMS Power (Watts):
|
600
|
|
Recommended Amp Power (RMS):
|
300 - 600
|
|
Peak Power (Watts):
|
1200
|
|
Sensitivity:
|
83.0dB (1W/1m)
|
|
Voice Coil:
|
1.75" (4.45 cm)
|
|
Magnet Weight:
|
6.9 lbs (110 oz.)
|
|
Mounting Depth:
|
7.95" (20.19 cm)
|
|
Cut Out Diameter:
|
9.25" (23.5 cm)
|
|
Sealed Enclosure Net Volume:
|
1.00 cu ft
|
|
Vented Enclosure Net Volume:
|
1.50 cu ft
|
|
Volume Displacement:
|
56 cu in
|
Downloads:
Items Shipped:
|
1
|
MTX Audio Thunder Square TS8510-44 Subwoofer
|
|
1
|
Owners Manual
|
