MTX Audio TM601D - Mono 600 Watt Marine Amplifier

$249.95*
90 Day
New
Model:
  • TM601D

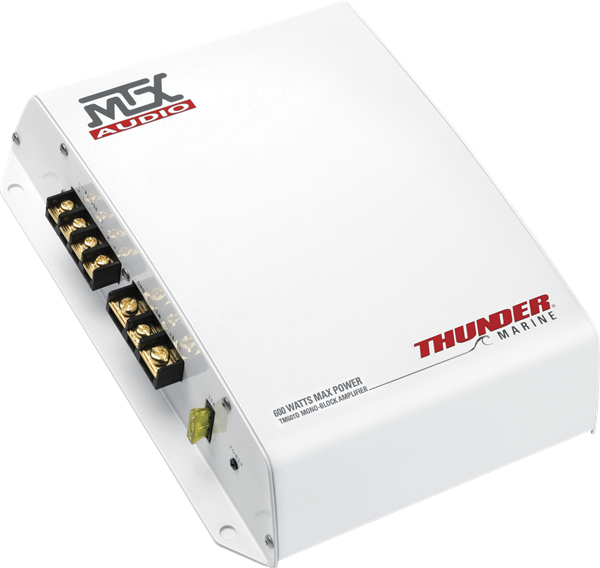

Front Angle View

Description:

Thunder Marine amplifiers are designed to work in any all weather environment.  Wether you are into wakeboarding, deep sea fishing, or running your UTV through the desert, Thunder Marine amplifiers are your answer for powering your sound system.  These amps are loaded with features that make them extremely resistant to the harshest conditions including conformal coated circuit boards, plexiglass covers and rubber inserts which all keep moisture away from critical electronic components.  Surface mount parts are also utilized to maximize vibration resistance which increases the reliability of the amplifier.  Available in four models, Thunder Marine amplifiers a solution for any enthusiast that wants to take their sounds off road.

Features:

  • Conformal Coated PCB and pre-amp prevent corrosion of key electrical components
  • Splash resistant end panels protect feature controls using Plexiglass covers that prevent moisture intrusion into the amplifier chassis
  • Intelligent Surface Mount Technology ensures electrical components are secured tightly to the PCB which increases the resistance to vibration
  • Stainless steel screws resist corrosion and gold plated terminals ensure maximum signal and current transfer
  • RCA connections have rubber gaskets surrounding them preventing moisture from entering the pre-amp or corroding the connector, rubber boots also included to cover unused RCA's

Specifications:

Part Number: TM601D
Maximum Input Signal: 2.5V
Maximum Sensitivity: 200mV
Crossover: 10dB/octave @ 85Hz
Bass Boost: Switchable @ 0, 6, or 12dB @ 40Hz
Frequency Response: 20Hz - 85kHz
Signal-to-Noise Ratio (1Watt): 73dB
2Ω RMS Power Output: 200W x 1 Channel
4Ω RMS Power Output: 100W x 1 Channel
Topology: Class D
Salt Spray Tested: 500 Hours ASTMB117-03
Dimensions
Height: 2 3/8" (6.03 cm)
Width: 7 5/16" (18.57 cm)
Depth: 9 1/2" (24.13 cm)

Downloads:

Items Shipped:

Qty Item
1 TM601D Thunder Marine Amplifier
1 Owners Manual
