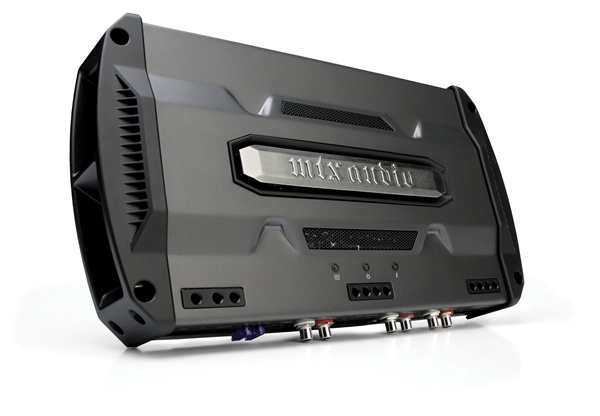

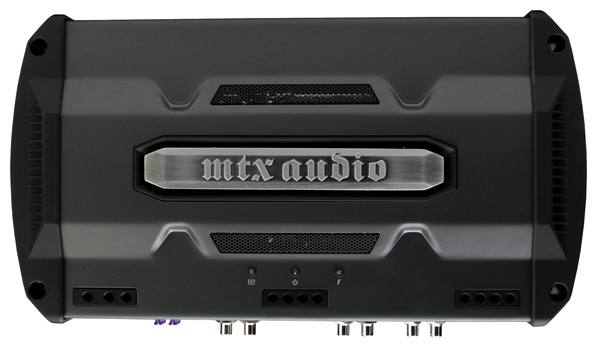

MTX Audio RFL404 4-Channel Amplifier
800 Watt Peak Power
$329.95
FREE!**
1 Year
New
|
|
|
Style says a lot of things about a person; it is an outward definition of what a person is. That being the case, the new RFL amplifiers are simply the hottest amplifiers to hit the streets since MTX's Thunder Elite amplifiers. Simple and clean, that is the best way that RFL amplifiers can be described. A gun metal grey chassis, black end-caps, and no nonsense attitude give these amps a sophisticated yet aggressive look. The large brushed MTX Audio gothic logo ties these amplifiers directly to the new TR and TS subwoofer series; but don't let those simple looks fool you, these amplifiers are packing a punch. We named them RFL for a reason! Six models, including a monster 5 channel that can run an entire system, make RFL amps the choice for anyone that wants to set their system off. Utilizing proven MTX technologies our engineers have created another amplifier that we are proud to call our own.
Stack'em Up
RFL Amplifiers feature a unique stackable design that allows them to be installed multiple configurations. Simply drop in and lock the included "Jackstands" and RFL amplifiers can be stacked up to three units high without the hassle of installing a complex stacking mechanism.
Keep Your Stock Radio, Navigation, and Steering Wheel Controls
RFL amps feature MTX Smart Engage technology making it easy to add RFL amplifiers to any factory or aftermarket system. You get to keep your factory A/V system, steering wheel controls and navigation without removing the factory source.
Get All Of The Power You Expect
Pure N-Channel V-FET Technology (Class A/B) - the best design for all multi-channel amplifiers making the output stage more efficient than common Class A/B amps. With this technology, you get more usable power than conventional Class A/B designs which lose much of their power as heat.
Listen to Your FM Radio or iPod FM Modulator Without Static From Your Amps
Adaptive Class D Technology - Class D amplifiers send out FM interference adding static to your radio signal. MTX Audio's Adaptive Class D Technology gives you more power and less audible interference so you only hear your music.
Real Power and Real Specs
CEA-2006 Compliant - makes it easy to compare technical characteristics of competitive amplifiers to help you determine the quality and performance of the amplifier you purchase. With amps that aren't CEA compliant, you never know how the specs were manipulated to get the numbers.
Features:
-
Patented Smart Engage Technology
-
Patented Pure N-Channel Design
-
Stackable Design
-
Variable Fan Speed Cooling
Specifications:
|
Part Number:
|
RFL404
|
|
Primary Ratings
|
|
|
Power Output:
|
50 Watts RMS x 4 Channels at 4 Ohms < 1% THD+N
|
|
Signal-to-noise Ratio (1 Watt):
|
75dB
|
|
Secondary Ratings
|
|
|
Power Output:
|
100 Watts RMS x 4 Channels at 2 Ohms < 1% THD+N
|
|
Power Output:
|
200 Watts RMS x 2 Channel bridged at 4 Ohms < 1% THD+N
|
|
THD+N (Distortion) (1 Watt):
|
< 1%
|
|
Frequency Response (-3dB):
|
20Hz to 20kHz
|
|
Maximum Input Signal:
|
5v
|
|
Maximum Sensitivity:
|
250mV
|
|
Patented Pure N-Channel Technology (Patent No: US05631608, US05783970)
|
|
|
Patented Power Supply: (US05598325)
|
|
|
Crossover:
|
Variable Low @40Hz to 5000Hz, 12dB/Oct / High @40Hz to 8000Hz, 12dB/Oct
|
|
Smart Engage:
|
Yes
|
|
Dimensions
|
|
|
Height:
|
8" (20.32 cm)
|
|
Width:
|
14 11/16" (37.31 cm)
|
|
Depth:
|
2 3/8" (6.03 cm)
|
|
Weight:
|
8.7 lbs (139.2 oz)
|
Downloads:
Items Shipped:
|
1
|
MTX Audio RFL404 4-Channel Amplifier
|
|
1
|
Install Sheet
|
|
2
|
JackStands
|
